當前位置：首頁 >> 離心泵
>> 屏蔽式離心泵 >> SPG型屏蔽式管道離心泵 更新時間 2026-1-16 0:40:39
屏蔽式離心泵
| SPG型屏蔽式管道離心泵 |
 |
產品名稱： | SPG型屏蔽式管道離心泵 | |||||
| 型號： | SPG | ||||||
| 流量： | 1.5-720m3/h | ||||||
| 揚程： | 8-125m | ||||||
| 功率： | 0.18-250KW | ||||||
|
|||||||
| 您正在瀏覽：【SPG型屏蔽式管道離心泵】 | |||||||
SPG型屏蔽式管道離心泵詳細介紹
SPG型屏蔽式管道離心泵產品概述：
SPG型屏蔽式管道離心泵，經我們科技人員消化革新，新推出的屏蔽泵新品，在原有基礎上改進電磁核心技術，改善了流體運動狀態，提高效率10%以上，綜合性能指標都上了一個臺階，立式屏蔽泵產品也更加理想。SPG型屏蔽式管道離心泵是一種電動機和泵體一體化結構的水泵，只有靜止密封（而不是旋轉的軸密封），所以能做到完全無泄露。因其電機自身低噪音，加之SPG型屏蔽式管道離心泵低故障率，高可靠性能，和維護成本低等優點贏得廣大用戶的歡迎，也增強了對中國市場高品質管道泵的需求。
SPG型屏蔽式管道離心泵應用范圍：
SPG型屏蔽式管道離心泵，經我們科技人員消化革新，新推出的屏蔽泵新品，在原有基礎上改進電磁核心技術，改善了流體運動狀態，提高效率10%以上，綜合性能指標都上了一個臺階，立式屏蔽泵產品也更加理想。SPG型屏蔽式管道離心泵是一種電動機和泵體一體化結構的水泵，只有靜止密封（而不是旋轉的軸密封），所以能做到完全無泄露。因其電機自身低噪音，加之SPG型屏蔽式管道離心泵低故障率，高可靠性能，和維護成本低等優點贏得廣大用戶的歡迎，也增強了對中國市場高品質管道泵的需求。
SPG型屏蔽式管道離心泵應用范圍：
SPG型屏蔽式管道離心泵廣泛應用在石油、化學工業，醫藥、紡織、核電、軍工及城市給排水，消防增壓，高層建筑增壓送水，園林噴灌，暖通制冷，等冷暖水循環增壓。特別是對振動、噪音要求高的場所，如重點工程、泵房、中央空調等等。還可以用來輸送壓力和溫度不產生結晶和凝固的液體，特別是對人體及環境有害的和不安全的液體和貴重液體等，如強腐蝕性，劇毒性，揮發性，放射性等介質。
SPG型屏蔽式管道離心泵型號說明：

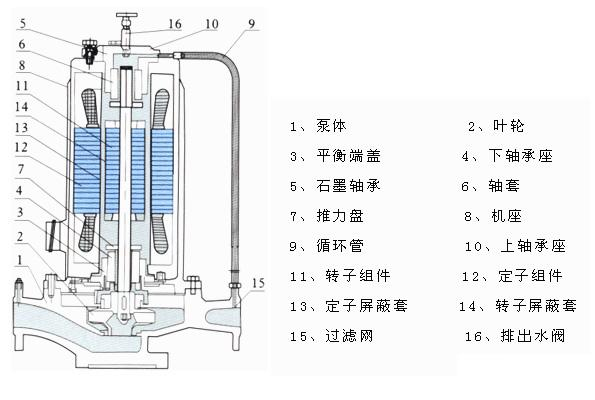

SPG型屏蔽式管道離心泵零件組裝圖：
SPG型屏蔽式管道離心泵產品特點：
1、SPG型屏蔽泵因能保證完全不泄漏，故可輸送對人體和環境，設備有害的及價格昂貴的易泄漏的液體。
2、不會吸入空氣，適于真空系統及輸送與空氣接觸發生變質的液體。
3、無油封設計，能可靠地輸送一般泵難以輸送的高溫，高壓，低溫及溫度壓力變化的液體。
4、軸承利用輸送液體自行潤滑，不需潤滑油,故不污染輸送液體，并免去了定期注油的麻煩。
5、結構合理,電機和泵同軸、體積小、重量輕、占地面積小、運行平穩、安裝方便、無須調整、維修方便、無須調整，維修方便。
6、屏蔽泵葉輪采用水推力平衡式設計，使轉子在運行中可以處于懸浮設計，降低了石墨軸承的國軸向磨損，從而提高了使用壽命，降低了運行成本。
7、電機無冷去風扇，故運行噪音和振動都非常小。
8、進出口法蘭的規格設計與標準閥門相同，且位于同一中心線上，中心低，便于管道布置，泵房設計也便為合理實用。
9、零部件的標準化,系列化程度高、
10、接線盒采用防水結構，可在戶外安全使用、
11、可根據使用要求，即流量和揚程的需要進行泵的串，并聯運行方式。
12、新采用的石墨軸承，具有耐磨性能高，磨擦系數低，不老化，抗泥沙等優點。
SPG型屏蔽式管道離心泵零件組裝圖：
SPG型屏蔽式管道離心泵性能參數表：
型號
|
流量
(m3/h)
|
揚程
(m) |
電機功率
(kw)
|
轉速
(r/min) |
SPG15-80
|
1.5
|
8
|
0.18
|
2900
|
SPG20-110
|
2.5
|
15
|
0.37
|
2900
|
SPG20-160
|
2.5
|
32
|
1.1
|
2900
|
SPG25-110
|
4
|
15
|
0.55
|
2900
|
SPG25-125
|
4
|
20
|
0.75
|
2900
|
SPG25-125A
|
3.6
|
16
|
0.55
|
2900
|
SPG25-160
|
4
|
32
|
1.5
|
2900
|
SPG25-160A
|
3.7
|
28
|
1.1
|
2900
|
SPG32-125
|
4.5
|
20
|
0.75
|
2900
|
SPG32-125A
|
4.0
|
16
|
0.55
|
2900
|
SPG40-100
|
6.3
|
12.5
|
0.55
|
2900
|
SPG40-100A
|
5.6
|
10
|
0.37
|
2900
|
SPG40-125
|
6.3
|
20
|
1.1
|
2900
|
SPG40-125A
|
5.6
|
16
|
0.75
|
2900
|
SPG40-160
|
6.3
|
32
|
2.2
|
2900
|
SPG40-160A
|
5.9
|
28
|
1.5
|
2900
|
SPG40-160B
|
5.2
|
24
|
1.1
|
2900
|
SPG40-200
|
6.3
|
50
|
4
|
2900
|
SPG40-200A
|
5.9
|
44
|
3
|
2900
|
SPG40-200B
|
5.5
|
38
|
2.2
|
2900
|
SPG40-250
|
6.3
|
80
|
7.5
|
2900
|
SPG40-250A
|
5.9
|
70
|
5.5
|
2900
|
SPG40-250B
|
5.5
|
60
|
4
|
2900
|
SPG40-100(I)
|
12.5
|
12.5
|
1.1
|
2900
|
SPG40-125(I)
|
12.5
|
20
|
1.5
|
2900
|
SPG40-125(I)A
|
11.2
|
17.2
|
1.1
|
2900
|
SPG40-160(I)
|
12.5
|
32
|
3
|
2900
|
SPG40-160(I)A
|
11.7
|
28
|
2.2
|
2900
|
SPG40-160(I)B
|
10.5
|
22.5
|
1.5
|
2900
|
SPG40-200(I)
|
12.5
|
50
|
5.5
|
2900
|
SPG40-200(I)A
|
11.7
|
40
|
4
|
2900
|
SPG40-200(I)B
|
10.5
|
35
|
3
|
2900
|
SPG40-250(I)
|
12.5
|
80
|
11
|
2900
|
SPG40-250(I)A
|
11.7
|
70
|
7.5
|
2900
|
SPG40-250(I)B
|
10.8
|
60
|
7.5
|
2900
|
SPG50-100
|
12.5
|
12.5
|
1.1
|
2900
|
SPG50-125
|
12.5
|
20
|
1.5
|
2900
|
SPG50-125A
|
11.2
|
17.2
|
1.1
|
2900
|
SPG50-160
|
12.5
|
32
|
3
|
2900
|
SPG50-160A
|
11.7
|
28
|
2.2
|
2900
|
SPG50-160B
|
10.5
|
22.5
|
1.5
|
2900
|
SPG50-200
|
12.5
|
50
|
5.5
|
2900
|
SPG50-200A
|
11.7
|
44.5
|
4
|
2900
|
SPG50-200B
|
10.5
|
35
|
3
|
2900
|
SPG50-250
|
12.5
|
80
|
11
|
2900
|
SPG50-250A
|
11.7
|
70
|
7.5
|
2900
|
SPG50-250B
|
10.8
|
60
|
7.5
|
2900
|
SPG50-100(I)
|
25
|
12.5
|
1.5
|
2900
|
SPG50-100(I)A
|
22.4
|
10
|
1.1
|
2900
|
SPG50-125(I)
|
25
|
20
|
3
|
2900
|
SPG50-125(I)A
|
22.4
|
16
|
2.2
|
2900
|
SPG50-160(I)
|
25
|
32
|
4
|
2900
|
SPG50-160(I)A
|
23.4
|
28
|
4
|
2900
|
SPG50-160(I)B
|
21.6
|
24
|
3
|
2900
|
SPG50-200(I)
|
25
|
50
|
7.5
|
2900
|
SPG50-200(I)A
|
23.4
|
44
|
7.5
|
2900
|
SPG50-200(I)B
|
21.6
|
37
|
5.5
|
2900
|
SPG50-250(I)
|
25
|
80
|
15
|
2900
|
SPG50-250(I)A
|
23.4
|
70
|
11
|
2900
|
SPG50-250(I)B
|
21.6
|
60
|
11
|
2900
|
SPG50-315(I)
|
25
|
125
|
30
|
2900
|
SPG50-315(I)A
|
23.4
|
110
|
22
|
2900
|
SPG50-315(I)B
|
21.6
|
93
|
18.5
|
2900
|
SPG65-100
|
25
|
12.5
|
1.5
|
2900
|
SPG65-100A
|
22.4
|
10
|
1.1
|
2900
|
SPG65-125
|
25
|
20
|
3
|
2900
|
SPG65-125A
|
22.4
|
16
|
2.2
|
2900
|
SPG65-160
|
25
|
32
|
4
|
2900
|
SPG65-160A
|
23.4
|
28
|
4
|
2900
|
SPG65-160B
|
21.6
|
24
|
3
|
2900
|
SPG65-200
|
25
|
50
|
7.5
|
2900
|
SPG65-200A
|
23.4
|
44
|
7.5
|
2900
|
SPG65-200B
|
21.6
|
37
|
5.5
|
2900
|
SPG65-250
|
25
|
80
|
15
|
2900
|
SPG65-250A
|
23.4
|
70
|
11
|
2900
|
SPG65-250B
|
21.6
|
60
|
11
|
2900
|
SPG65-315
|
25
|
125
|
30
|
2900
|
SPG65-315A
|
23.4
|
110
|
22
|
2900
|
SPG65-315B
|
21.6
|
93
|
18.5
|
2900
|
SPG65-100(I)
|
50
|
12.5
|
3
|
2900
|
SPG65-100(I)A
|
44.8
|
10
|
2.2
|
2900
|
SPG65-125(I)
|
50
|
20
|
5.5
|
2900
|
SPG65-125(I)A
|
44.8
|
16
|
4
|
2900
|
SPG65-160(I)
|
50
|
32
|
7.5
|
2900
|
SPG65-160(I)A
|
46.8
|
28
|
7.5
|
2900
|
SPG65-160(I)B
|
43.2
|
24
|
5.5
|
2900
|
SPG65-200(I)
|
50
|
50
|
15
|
2900
|
SPG65-200(I)A
|
46.8
|
44
|
11
|
2900
|
SPG65-200(I)B
|
43
|
37
|
7.5
|
2900
|
SPG65-250(I)
|
50
|
80
|
22
|
2900
|
SPG65-250(I)A
|
46.8
|
70
|
18.5
|
2900
|
SPG65-250(I)B
|
43
|
60
|
15
|
2900
|
SPG65-315(I)
|
50
|
125
|
37
|
2900
|
SPG65-315(I)A
|
45.8
|
105
|
30
|
2900
|
SPG65-315(I)B
|
43
|
93
|
30
|
2900
|
SPG80-100
|
50
|
12.5
|
3
|
2900
|
SPG80-100A
|
44.8
|
10
|
2.2
|
2900
|
SPG80-125
|
50
|
20
|
5.5
|
2900
|
SPG80-125A
|
44.8
|
16
|
4
|
2900
|
SPG80-160
|
50
|
32
|
7.5
|
2900
|
SPG80-160A
|
46.8
|
28
|
7.5
|
2900
|
SPG80-160B
|
43.2
|
24
|
5.5
|
2900
|
SPG80-200
|
50
|
50
|
15
|
2900
|
SPG80-200A
|
46.8
|
44
|
11
|
2900
|
SPG80-200B
|
43
|
37
|
7.5
|
2900
|
SPG80-250
|
50
|
80
|
22
|
2900
|
SPG80-250A
|
46.8
|
70
|
18.5
|
2900
|
SPG80-250B
|
43
|
60
|
15
|
2900
|
SPG80-315
|
50
|
125
|
37
|
2900
|
SPG80-315A
|
45.8
|
105
|
30
|
2900
|
SPG80-315B
|
43
|
93
|
30
|
2900
|
SPG80-315C
|
41
|
85
|
22
|
2900
|
SPG80-100(I)
|
100
|
12.5
|
5.5
|
2900
|
SPG80-100(I)A
|
89
|
10
|
4
|
2900
|
SPG80-125(I)
|
100
|
20
|
11
|
2900
|
SPG80-125(I)A
|
89
|
16
|
7.5
|
2900
|
SPG80-160(I)
|
100
|
32
|
15
|
2900
|
SPG80-160(I)A
|
93.5
|
28
|
11
|
2900
|
SPG80-160(I)B
|
86.4
|
24
|
11
|
2900
|
SPG80-200(I)
|
100
|
50
|
22
|
2900
|
SPG80-200(I)A
|
93.5
|
44
|
18.5
|
2900
|
SPG80-200(I)B
|
86.4
|
37
|
15
|
2900
|
SPG80-250(I)
|
100
|
80
|
37
|
2900
|
SPG80-250(I)A
|
93.5
|
70
|
30
|
2900
|
SPG80-250(I)B
|
86.4
|
60
|
30
|
2900
|
SPG80-315(I)
|
100
|
125
|
75
|
2900
|
SPG80-315(I)A
|
93.5
|
110
|
55
|
2900
|
SPG80-315(I)B
|
86.4
|
93
|
45
|
2900
|
SPG80-315(I)C
|
82
|
85
|
37
|
2900
|
SPG100-100
|
100
|
12.5
|
5.5
|
2900
|
SPG100-100A
|
89
|
10
|
4
|
2900
|
SPG100-125
|
100
|
20
|
11
|
2900
|
SPG100-125A
|
89
|
16
|
7.5
|
2900
|
SPG100-160
|
100
|
32
|
15
|
2900
|
SPG100-160A
|
93.5
|
28
|
11
|
2900
|
SPG100-160B
|
86.4
|
24
|
11
|
2900
|
SPG100-200
|
100
|
50
|
22
|
2900
|
SPG100-200A
|
93.5
|
44
|
18.5
|
2900
|
SPG100-200B
|
86.4
|
37
|
15
|
2900
|
SPG100-250
|
100
|
80
|
37
|
2900
|
SPG100-250A
|
93.5
|
70
|
30
|
2900
|
SPG100-250B
|
86.4
|
60
|
30
|
2900
|
SPG100-315
|
100
|
125
|
75
|
2900
|
SPG100-315A
|
93.5
|
110
|
55
|
2900
|
SPG100-315B
|
86.4
|
93
|
45
|
2900
|
SPG125-100
|
160
|
12.5
|
11
|
2900
|
SPG125-100A
|
143
|
10
|
7.5
|
2900
|
SPG125-125
|
160
|
20
|
15
|
2900
|
SPG125-125A
|
143
|
16
|
11
|
2900
|
SPG125-160
|
200
|
32
|
30
|
2900
|
SPG125-160A
|
187
|
28
|
22
|
2900
|
SPG125-160B
|
180
|
24.5
|
18.5
|
2900
|
SPG125-200
|
200
|
50
|
45
|
2900
|
SPG125-200A
|
187
|
44
|
37
|
2900
|
SPG125-250
|
200
|
80
|
75
|
2900
|
SPG125-250A
|
187
|
70
|
55
|
2900
|
SPG125-315
|
200
|
125
|
110
|
2900
|
SPG125-315A
|
187
|
110
|
90
|
2900
|
SPG125-315B
|
172
|
93
|
75
|
2900
|
SPG150-250
|
200
|
80
|
75
|
2900
|
SPG150-250A
|
187
|
70
|
55
|
2900
|
SPG150-250B
|
172
|
60
|
45
|
2900
|
SPG150-315
|
200
|
125
|
110
|
2900
|
SPG150-315A
|
187
|
110
|
90
|
2900
|
SPG150-315B
|
172
|
93
|
75
|
2900
|
SPG125-200(I)A
|
143
|
10
|
7.5
|
1450
|
SPG125-250(I)
|
160
|
20
|
15
|
1450
|
SPG125-250(I)A
|
147
|
17
|
11
|
1450
|
SPG125-250(I)B
|
134
|
14
|
7.5
|
1450
|
SPG125-315(I)
|
160
|
32
|
22
|
1450
|
SPG125-315(I)A
|
150
|
28
|
18.5
|
1450
|
SPG125-315(I)B
|
138
|
24
|
15
|
1450
|
SPG125-400(I)
|
160
|
50
|
37
|
1450
|
SPG125-400(I)A
|
150
|
44
|
30
|
1450
|
SPG125-400(I)B
|
138
|
38
|
30
|
1450
|
SPG150-200
|
160
|
12.5
|
11
|
1450
|
SPG150-200A
|
143
|
10
|
7.5
|
1450
|
SPG150-250
|
160
|
20
|
15
|
1450
|
SPG150-250A
|
147
|
17
|
11
|
1450
|
SPG150-250B
|
134
|
14
|
7.5
|
1450
|
SPG150-315
|
160
|
32
|
22
|
1450
|
SPG150-315A
|
150
|
28
|
18.5
|
1450
|
SPG150-315B
|
138
|
24
|
15
|
1450
|
SPG150-400
|
160
|
50
|
37
|
1450
|
SPG150-400A
|
150
|
44
|
30
|
1450
|
SPG150-400B
|
138
|
38
|
30
|
1450
|
SPG150-200(I)
|
200
|
12.5
|
15
|
1450
|
SPG150-200(I)A
|
179
|
10
|
11
|
1450
|
SPG150-250(I)
|
200
|
20
|
18.5
|
1450
|
SPG150-250(I)A
|
187
|
17.5
|
15
|
1450
|
SPG150-250(I)B
|
173
|
14
|
11
|
1450
|
SPG150-315(I)
|
200
|
32
|
30
|
1450
|
SPG150-315(I)A
|
187
|
28
|
22
|
1450
|
SPG150-315(I)B
|
173
|
24
|
18.5
|
1450
|
SPG150-400(I)
|
200
|
50
|
45
|
1450
|
SPG150-400(I)A
|
187
|
44
|
37
|
1450
|
SPG150-400(I)B
|
173
|
37.5
|
30
|
1450
|
SPG200-200
|
200
|
12.5
|
15
|
1450
|
SPG200-200A
|
179
|
10
|
11
|
1450
|
SPG200-250
|
200
|
20
|
18.5
|
1450
|
SPG200-250A
|
187
|
17.5
|
15
|
1450
|
SPG200-250B
|
173
|
14
|
11
|
1450
|
SPG200-315
|
200
|
32
|
30
|
1450
|
SPG200-315A
|
187
|
28
|
22
|
1450
|
SPG200-315B
|
173
|
24
|
18.5
|
1450
|
SPG200-400
|
200
|
50
|
45
|
1450
|
SPG200-400A
|
187
|
44
|
37
|
1450
|
SPG200-400B
|
173
|
37.5
|
30
|
1450
|
SPG200-200(I)
|
400
|
12.5
|
22
|
1450
|
SPG200-200(I)A
|
358
|
10
|
18.5
|
1450
|
SPG200-250(I)
|
400
|
20
|
30
|
1450
|
SPG200-250(I)A
|
358
|
16
|
22
|
1450
|
SPG200-250(I)B
|
322
|
13
|
18.5
|
1450
|
SPG200-315(I)
|
400
|
32
|
55
|
1450
|
SPG200-315(I)A
|
374
|
28
|
45
|
1450
|
SPG200-315(I)B
|
346
|
24
|
37
|
1450
|
SPG200-400(I)
|
400
|
50
|
90
|
1450
|
SPG200-400(I)A
|
374
|
44
|
75
|
1450
|
SPG200-400(I)B
|
347
|
38
|
55
|
1450
|
SPG200-400(I)C
|
320
|
32
|
45
|
1450
|
SPG250-250
|
550
|
20
|
45
|
1450
|
SPG250-250A
|
490
|
16
|
37
|
1450
|
SPG250-315
|
550
|
32
|
75
|
1450
|
SPG250-315A
|
515
|
28
|
55
|
1450
|
SPG250-315B
|
476
|
24
|
45
|
1450
|
SPG250-400
|
550
|
50
|
110
|
1450
|
SPG250-400A
|
515
|
44
|
90
|
1450
|
SPG250-400B
|
476
|
37.5
|
75
|
1450
|
SPG300-400
|
720
|
50
|
132
|
1450
|
SPG300-400A
|
662
|
44
|
110
|
1450
|
SPG300-400B
|
609
|
38
|
90
|
1450
|
SPG300-400C
|
561
|
33
|
75
|
1450
|
SPG300-460
|
720
|
65
|
200
|
1450
|
SPG300-460A
|
662
|
55
|
160
|
1450
|
SPG300-460B
|
609
|
45
|
110
|
1450
|
SPG300-460C
|
561
|
38
|
90
|
1450
|
SPG300-510
|
720
|
80
|
250
|
1450
|
SPG300-510A
|
662
|
70.5
|
200
|
1450
|
SPG300-510B
|
609
|
62
|
160
|
1450
|
SPG300-510C
|
561
|
54.5
|
132
|
1450
|
SPG型屏蔽式管道離心泵安裝尺寸圖：
提示：本文中所有文字、數據、圖片均只適用于參考，需要了解更詳細的【SPG型屏蔽式管道離心泵】參數、選型、價格等請聯系我們，我們將竭誠為您服務！
